Central Carolina Scale sells and services Doran Scales and Meters

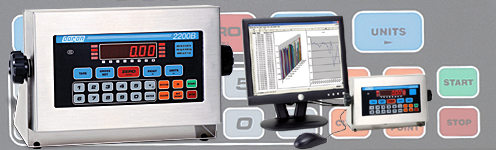

Doran Model 2200B Process
Control Digital Weight Indicator
Introducing the NEW
Doran 2200B Batching and Process Control Weight Indicator -- Your
Best Choice for Advanced Batching and Process Control
Let's face it; when it
comes to batching or process control there are many choices available.
But now Doran Technology offers a different and better choice - the
all-new Doran 2200B Batching Indicator. This new full-featured indicator
adds outstanding batching and process control programming along with
ergonomic ease of operation to all of the features and benefits of
the recently introduced Doran 2200 Advanced Weight Indicator. We are
sure that the Doran 2200B will be your best choice for advanced batching
or process control applications.
|
Doran
2200B - the Smart Choice
* Intuitive and easy to use full function keypad.
* The 2200B smart display and setpoint status indicators show
the current batch or process control status and active Setpoints.
* Connect, control, and communicate to any device or computer
with the two standard RS-232 ports, or with optional wired Ethernet,
Wireless Ethernet, Modbus/TCP, USB, 4-20mA, RS-485 or Fiber
Optic.
Doran
2200B - the Intelligent Choice
*
Doran Dimension setup program and Macro style batch programming
allow for sophisticated batch routines with minimal programming
effort.
* 8 Setpoints and optional relays, with as many 100 batch program
steps; incorporating up to 35 commands per batch routine make
the 2200B a truly intelligent indicator.
* Innovative Setpoint Inputs, Preacts and Learning Preacts.
|
Take control with the best
value in any filling and batching weight indicator. The feature-packed
2200B has been designed to be easy to use and configure, saving you
time and money. From the user-friendly keypad to the robust software
capabilities, and extensive communications options, you'll soon see
why the Model 2200B Digital Weight Indicator is a better solution.
Feature-Filled Keypad
With START and STOP
The keypad of the 2200B allows for entry of digital tare, time and
date, accumulator, eight product ID's, and eight setpoint outputs.
Start, stop, and pause batching processes with color-coded START and
STOP keys on the front panel. The eight annunciators on the front
panel make configuring and monitoring complex process control setpoints
an effortless task.
Batch Configuration
With a Click of a Mouse
Gain precise control of complex batching routines with the Model 2200B.
Configuring a batching routine of up to 100 steps incorporating over
35 commands with Point and Click simplicity with the free Windows®
based Dimension software. You won't believe the flexibility, simplicity,
and ease of use of the Model 2200B.
Wide Variety of Communications
and Control Options
Connect, control, and communicate to any device or computer with the
two standard RS-232 ports, eight standard outputs, two standard inputs,
or a wide range of communication options. Connect with our wired Ethernet,
Wireless Ethernet, Modbus/TCP, USB, 4-20mA, RS-485, or Fiber Optic
options. Control your process with optional relays that can be mounted
inside the enclosure to provide a turnkey solution. Communicate with
the flexible and user defined data strings to include tare, product
ID and time and date. Send your data to a barcode printer or insert
it directly into an Excel spreadsheet using Doran's
optional Excelerator Data Collection software.
- The
easy to use full function keypad allows for simple entry of digital
tare, time and date, accumulator, eight product IDs, setpoint
outputs, and grade values.
- Start, stop, and pause batching processes with color coded START and STOP keys on the front panel.
- Configuring and monitoring complex process control is easy to do thanks to the eight
annunciators just below the bright red LED display.
- Configure a batching routine of up to 100 steps incorporating 35 commands with a click of a mouse with the free Windows bases Dimension software.
- Standard
software features such as programmable data communication, product
grading, peak hold, multiple ID numbers, accumulator, and counter,
give you the power to effectively monitor your manufacturing process.
- Connect,
control, and communicate to any device or computer with the two
standard RS-232 ports, eight standard outputs, two standard inputs,
or a wide range of communication options.
- Connect
with our wired Ethernet, Wireless Ethernet, Modbus/TCP, USB, 4-20mA,
RS-485, or Fiber Optic options.
- Compatible
with Doran's
Excelerator data collection software.
- Displays
in lb, kg, g, oz, or lb&oz
- NTEP
certified C of C #06-101
- 2
Year Warranty
|
Brochure
(pdf file)
Specifications
- Enclosure:
10"
w x 6" h x 3" d
- Power:
115 VAC 50/60Hz
(230 VAC or Internal Rechargeable Battery Optional)
- NTEP:
nmax = 10,000d
(C of C #06-101)
- Display:
6 Digit, red LED, 0.56" high
- Construction:
NEMA 4X / IP69K
304 Stainless Steel (16 Gauge)
Options
-
Remote
Display
- Remote
Switch
- Audible
Alarms
- Bench
Platforms
|
|
All of the features and
benefits of the Doran 2200 with powerful batching capabilities. Macro
style setpoint programming makes even sophisticated batch or process
control routines easy to program. 8 setpoint/relays with inputs, outputs
and preacts, including an innovative learning preact mode. The ideal
solution for industrial, food processing, or baking process control
applications. Harness the power and flexibility of Doran's 2200B in
your most demanding setpoint, process control and batching applications.
Full Function Keypad •
Powerful Software Features • Advanced Communications and Control
• Washdown Safe
Call (919) 776-7737 for
more info or to place an order
|
