GSE 250 Digital Weight Indicator and Customized Weighing Systems

Call (919) 776-7737

Sales, Service, Calibration, & Rentals

Celebrating over 25 years in business

PRODUCTS

Central Carolina Scale sells and services GSE-SPX Scales and Weighing Equipment

GSE 250 Series Digital Weight indicators

The newest addition to the GSE digital indicator product line... The Model 250, 255 and 250X are feature packed with easy set-up and operation. The Model 250 operates with an AC adapter or four AA batteries that provide up to 38 hours of continuous operation. Ideal for use with floor scales and bench scales. The GSE 250 Digital Weight Indicator is competitively priced, and suitable for tankweighing, agricultural, signal conditioning, and general industrial weighing applications. It is available in standard ABS, face plate panel mount, or SS enclosure. The 255 features a full keypad, easy to read LCD display and ABS enclosure. The washdown safe 250X features a IP69K rating and capacitive 6 key keypad. The indicator is an economical choice for severe washdown applications.


250	255	250X

GSE 250 Digital Weight Readout

FEATURES
· Time & Date Clock (Non-Volatile)
· Selectable Weighing Units (lb, kg, g, t)
· Durable ABS Enclosure
· Panel Mount Capable
· One Remote Key Input
· Silicon Rubber Key Pad with Key Disable Function
· Two TTL Level Setpoints
· Function Key (Selectable)
· One RS232 Communication Port
· Parts Counting Functions

Description	Part Number
Indicator includes AC wall transformer, USA	200250-30020
Indicator Only, Does Not Include AC Power Supply Battery Operation	200250-39020
Indicator includes AC wall transformer, UK	200250-33020
Indicator includes AC wall transformer, Euro	200250-34020

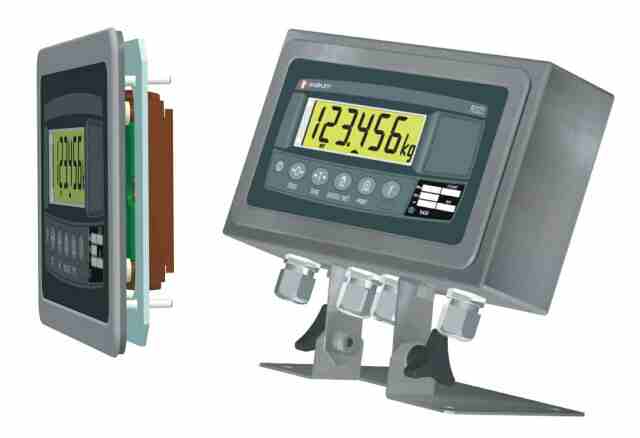

Model 250 Stainless Steel Weight Indicator

250 SS

Swivel bracket and stand included.
Keypad: Membrane, 5 key, English text and OIML legend
Display: LCD Backlit, 6 Digit, 0.8” (20mm)
Mounting: Desk or Wall
Power: 110 - 240 VAC Power Supply
350 Ohm Load Cells: 4
Scale Inputs: 1
Setpoint I/O: 2 Outputs

Model 250 Stainless Steel Indicator, NEMA 4X (IP66) Part Number: 200250-00020
Swivel Bracket, 5 Key Function

Also available: Model 250 Stainless Steel Panel Mount, Part Number: 200250-19020
Power Supply not included. 12 - 24 VDC Input Voltage

Model 255 Weight Indicator

255 dwi keypad

Offers a modular approach in weighing applications. A unique option BUS system provides simplified "snap-in" installation for additional serial, analog, and relay modules.
Keypad: Silicone rubber full numeric keypad and 3 Assignable Function Keys
Power: 110 - 240 VAC
Communication: 1 RS232 Bi-directional Port, 1 RS485 Transmit Only
Display: LCD Display with 4 alpha-numeric displays and LED backlight
350 Ohm Load Cells: 16
Scale Inputs: 1
Setpoint I/O: 32

Indicator includes AC Power Supply Module, Part Number: 200255-30020
& Desk Stand

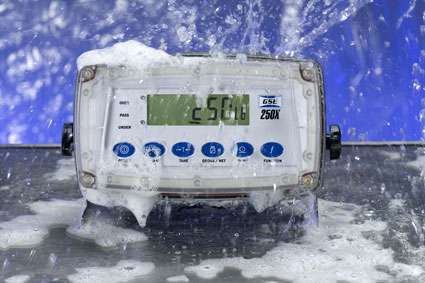

GSE 250X Xtreme Washdown Safe Digital Weight Indicator

250X Brochure (pdf file)

Description	Part Number
Indicator includes AC power supply (90-240 VAC)	200250X-80020
Indicator includes DC power supply (battery operation w/ charger)	200250X-81020
Indicator includes DC input only	200250X-89020
