PRODUCTS

GSE 651 Series USED Digital Weight Indicators

The GSE 651 (used models) is a sophisticated digital weight controller designed for demanding applications. The 651 series controllers are fully programmable and can be configured for virtually any application. Exceptional features include: statistical process, data acquisition and management, 128 programmable I/O with SCR control and advanced communications capabilities. These used 651's come standard with stainless steel enclosure, multidisplay board, and are AC powered. Each unit has been checked and is in good condition.

Optional items are listed below. These may be purchased with the indicator or seperately. Each indicator can hold (1) multi scale board and (1) or (2) Analog/Current loop output boards (you would need the GSE options enclosure box if ordering the indicator with (2) analog/current loop output boards. Mounting brackets are optional and do not come standard with the unit.

Specifications (pdf file)



Used GSE 651Indicator Specifications
Part No.	Enclosure	Specifications
200651-00000	Standard Stainless Steel Enclosure	90-250 VAC, 4 Line x 20 Character Display, English Keypad,  USA Line Cord





Used GSE Options available with the Used 651 Indicators OR Seperately
Part Number		Description	Notes
24650B-200B0		Multi-Scale Modules for 650 and 651	M/S Board, installs internal on main PC Board - if analog boards 24650B-203B0 is NOT installed.
24650B-203B0		Analog Output Module 0-10 VDC, 0-20 mA, 4-20 mA	Installs internal on 650 / 651 / 653 / 654 main pc board if Multi-scale board 24650B-200B0 is NOT installed.
07-12-0420		4x20 VF Display Module	Multi Display

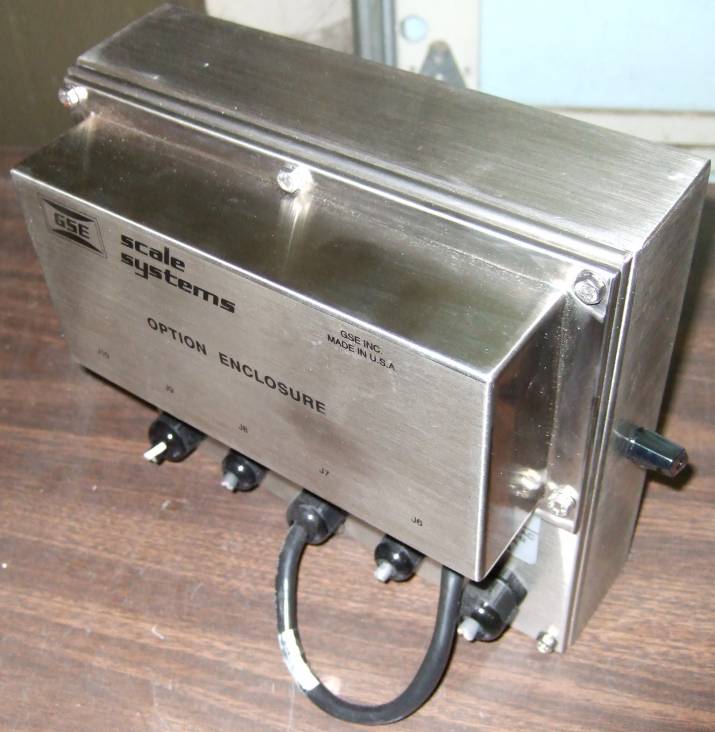

		GSE Option Enclosure Box Stainless Steel	Can be used to house (2) Analog Output/Current loop optional boards
		U shaped Mounting Brackets with thumb screws	Wraps around the indicator for desktop or wall mounting
39-10-31468 39-10-33902		GSE 650 series User Guide and Technical Manual	You can download GSE 651 manuals at GSE website http://www.gse-inc.com
